Iseki SF235 Out-Front Rotary Mower-Collector

Introducing the new Iseki SF235 out-front rotary mower-collector, offered with a 32.5 hp engine and a choice of cutting decks measuring 54″ or 60″ wide. These high performance out-front rotary mower collectors are designed to facilitate grass cutting in the most difficult areas.

Height of cut can easily be adjusted from 25-120mm without the use of tools, using the single height adjustment lever.

An impressive 950 litre, turbine driven, high-tip collector boosts efficiency when collecting grass. Its clearance height of 2125mm provides superior access when depositing the cut grass into waste skips, collector trucks or bins.

Routine servicing and maintenance is refreshingly easy with excellent access to the engine, raditator and service points.

SF235 BROCHURE

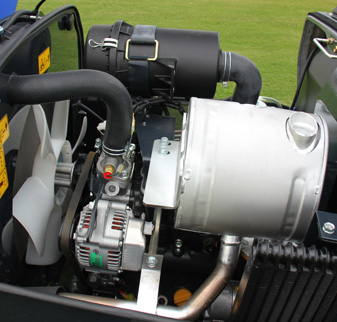

Engine

  • 32.5 Iseki engine

  • High torque at low revs

  • Incredible fuel efficiency and performance

Operator’s Platform

  • Ergonomic layout reduces operator fatigue

  • Comfortable air suspension seat

  • Adjustable steering column

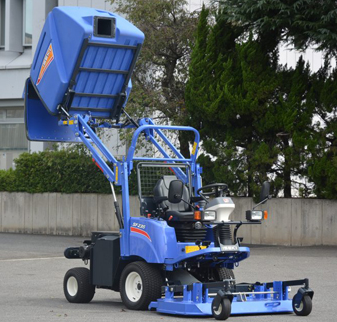

High-dump Catcher

  • Large 950L turbine-driven, high-tip collector

  • Impressive 2.1m dumping height

  • Maximum performance in tough conditions

PTO Performance

  • Straight, strong design

  • Less wear and tear means greater longevity

  • Independent PTO control for fast, easy engagement

Options and Specifications

ENGINE
Type Iseki E3CD
No. of cylinders 3
Displacement 1498
Output (hp) 32.5
Fuel capacity 40 litres
TRANSMISSION
Type Hydrostatic
Forward 15 km/h
Reverse 10 km/h
4WD Auto or 4WD
Type Dry drum
TYRES
Type Turf
Front 23 x 10.50 – 12
Rear 18 x 8.5 – 8
DIMENSIONS
Length 3121mm (with 54″ mower deck)
Width 1562mm (60″) | 1441mm (54″)
Height 1176mm (2120mm with ROPS)
Weight (inc. Mower) 1270kg
MOWER DECK SCMB60
Type Rotary rear discharge
Cutting Width 60″
No. of blades 2
Adjustment 1 action lever
Min. cutting height 25mm
MOWER DECK SCMBA54
Type Rotary rear discharge
Cutting width 54″
No. of blades 2
Adjustment 1 action lever
Min. cutting height 25mm
MOWER DECK SSM54
Type Rotary side discharge
Cutting width 54″
No. of blades 3
Adjustment Pin type
Min. cutting height 25mm
COLLECTOR SBC950
Capacity 950 litres
Blower Turbine fan
Dump & lift Hydraulic
Dump height 2125mm
