Iseki TG Series Compact Tractors

36 HP – 60 HP

Iseki TG Series sets the benchmark for compact tractors. Designed for demanding environments and high performance applications, the TG Series boast power, reliability and versatile options that make them ideal compact tractors for commercial farming, municipal councils as well as larger property owners.

Iseki TG Series compact tractors are available with the choice of 3 or 4 cylinder engines that combine efficiency with high torque at low revs. Fingertip power shuttle controls make loader work easy and fast and Iseki’s 1780kg three point linkage lift capacity means the TG is a versatile workhorse capable of handling a range of implement attachments.

TG Series Brochure

3 or 4 Cylinder Engines

  • Quiet and efficient
  • Full power at low revs
  • Easy maintenance access

Operator’s Platform

  • Rubber mounts isolate vibration
  • Ergonomically located controls
  • Comfortable design seats

Hydrostatic Transmission

  • Three range transmission
  • Single forward/reverse pedals with shuttle lever
  • 4WD & diff lock

Hydraulics & Linkage

  • Two rear and two mid-mounted remotes
  • Up to 48.6 l/m hydraulic flow
  • Up to 1780KG three point linkage lift capacity

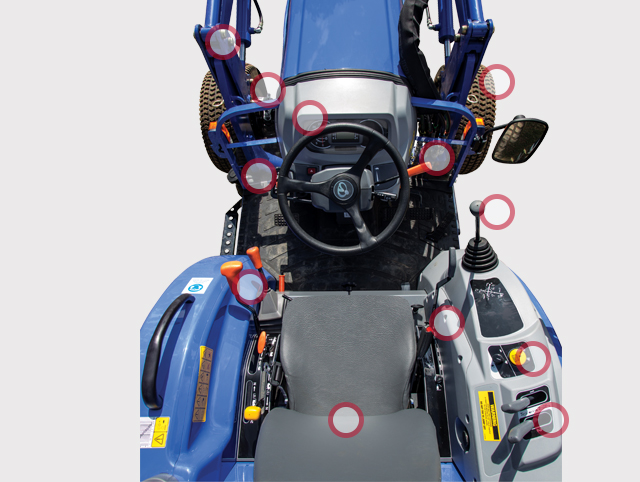

TG Series Features

Click on hotspots for Iseki TG features

Front End Loader

4 in 1 or standard loader options.

Large Instrument Panel

Easy to read gauges and digital screen for quick reference of tractor functions in challenging conditions

Tyre Options

The TG Series' versatile capabilities are complemented by the option of agricultural, turf or industrial tyres for sure footed grip or less aggressive flotation.

Hand Throttle Lever

Maintain fast effective control with an easy reach throttle control lever located on the steering column.

Auxiliary Hydraulics Joystick Control

Integrated and ergonomically located joystick control for fast, efficient loader work and a comfortable work environment for the operator.

Three Point Linkage Position control

Maintain three point linkage height control with an easy to reach lever.

Electro Hydraulic PTO

Fender mounted control. Soft start reduces implement shock and increases operator comfort.

Deluxe Seat

Iseki's deluxe operator's seat absorbs vibration, increasing comfort levels and reducing operator fatigue on long working days.

Range and Speed Levers

Offering 12 forward and 12 reverse gears

Heavy Duty Axles

Strong front and rear axles are capable of handling the toughest jobs and make the TG Series ideal for heavy loader work

Rear Auxiliary Hydraulic Levers

Fender located levers maintain control of rear implement hydraulics.

Forward Reverse Power Shuttle

Change of direction is as easy and fast with a forward reverse power shuttle lever located at the operators finger tips, ideal for fast efficient loader work and other applications that involve constant changes in direction.

Options and Specifications

Model TG6370P.4R TG6400H.4R TG6400H.4C TG6490H.4C TG6490P.4R TG6490P.4C TG5570 TG5570
Platform ROPS ROPS CAB CAB ROPS CAB ROPS CAB
Engine
Displacement/Cyl 1647cc/3 1498cc/3 1498/3 2197/4 2197/4 2197/4 2995/4 2995/4
Rated Power Kw/HP 26.6/35.7 28.7/38.5 28.7/38.5 35.1/47.1 35.1/47.1 35.1/47.1 44.1/60 44.1/60
PTO
Type Independent Independent Independent Independent Independent Independent Independent Independent
Speeds Rear 540 540 540 540 540 540 540 540
Transmission
Clutch Type Dry Single N/A N/A N/A Dry Single Dry Single Pwr Shuttle Pwr Shuttle
Shuttle STD STD STD STD STD STD STD STD
Hydraulics
Lift Capacity 1270 1270 1270 1580 1580 1580 1700 1700
Remote outlets @ rear 2 2 2 2 2 2 2 2
Tyre Options Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Turf, Ag, Industrial Ag Ag
